The Electar Spanish Guitar was introduced in 1935 as the first Epiphone electric guitar and produced until about 1939. It differed from the acoustic archtops in having a flat back, a neck mounted flush with the body and a horizontal braced top. This heavy bracing, according to the 1937 Electar catalog, “properly supported and dampened (the top) in order to avoid after tones and acoustic feedback”.
Although Gibson had begun producing an electric Hawaiian a few months earlier, Epiphone beat Gibson to market with the electric Spanish-neck model. In contrast to Gibson, which had cautiously worked its new model into the sales stream, Epiphone called attention to the new models, giving them their own brand name: Electar. In less than two years Epiphone was fully committed to electric guitars. To develop an amplifier line, Epiphone hired a local Manhattan boy named Nat Daniel.

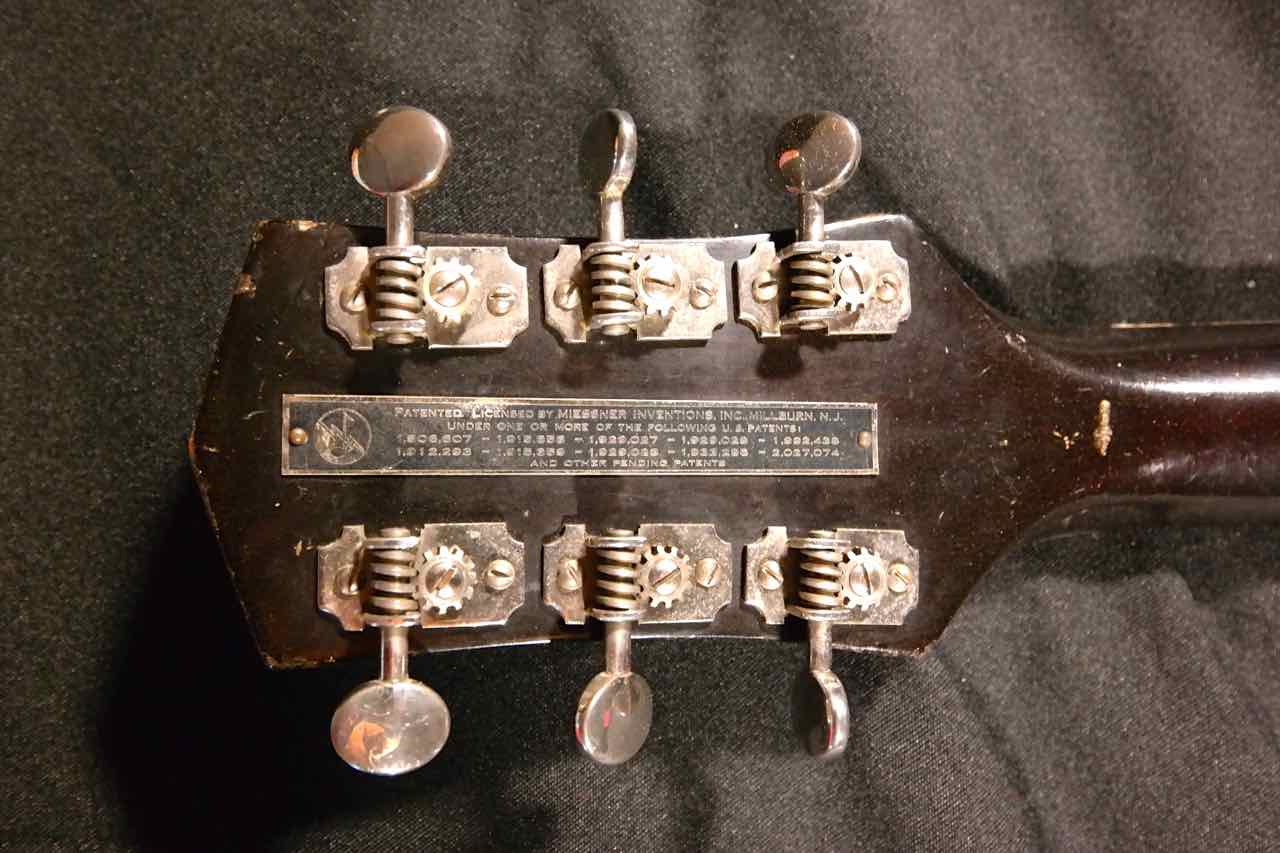

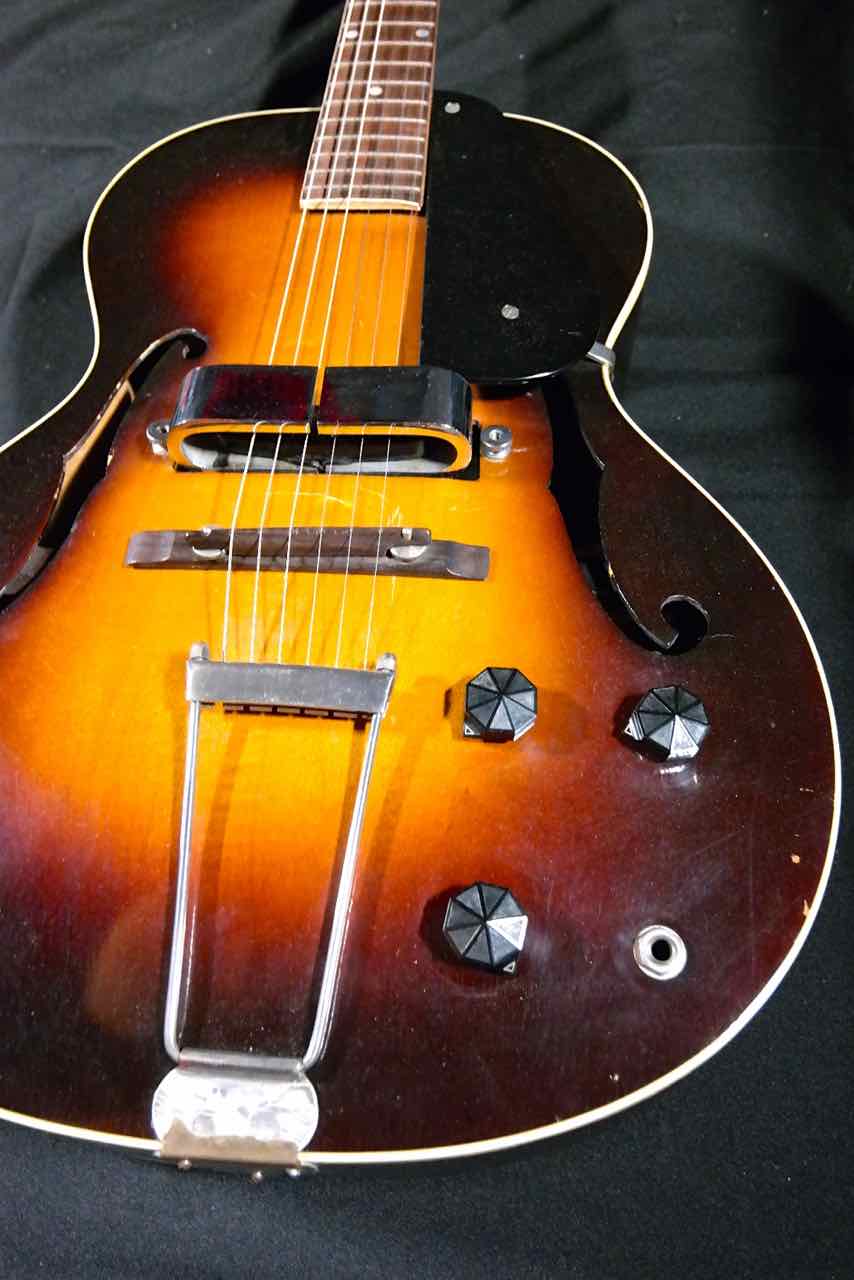

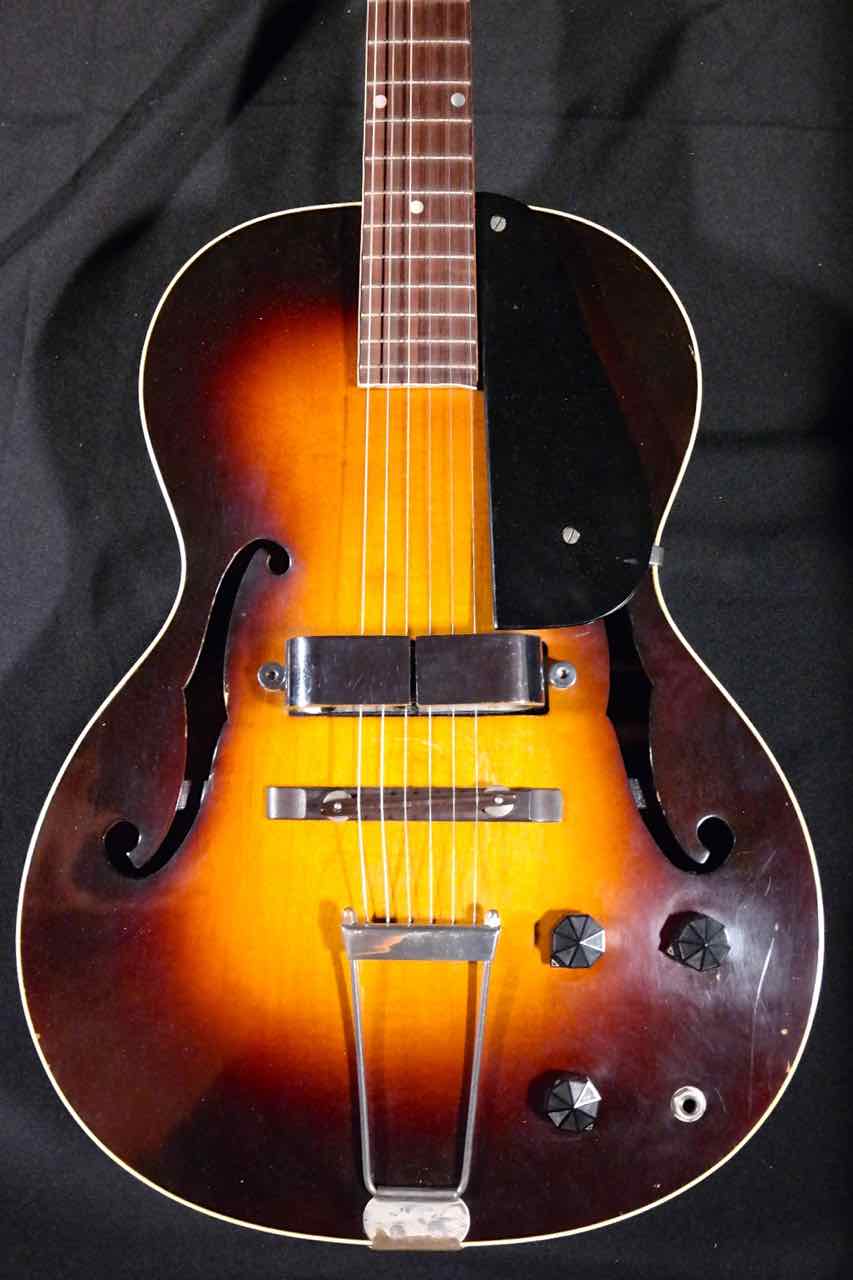

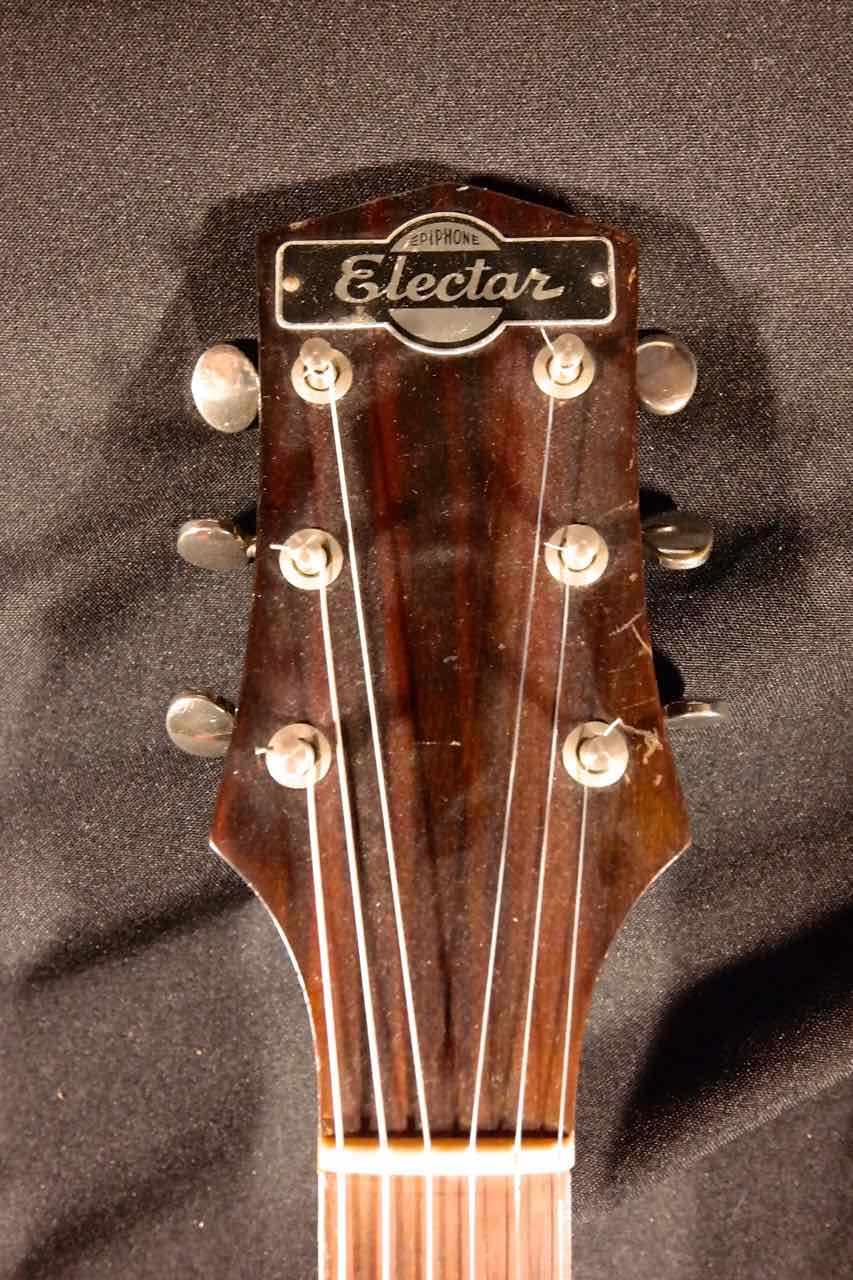

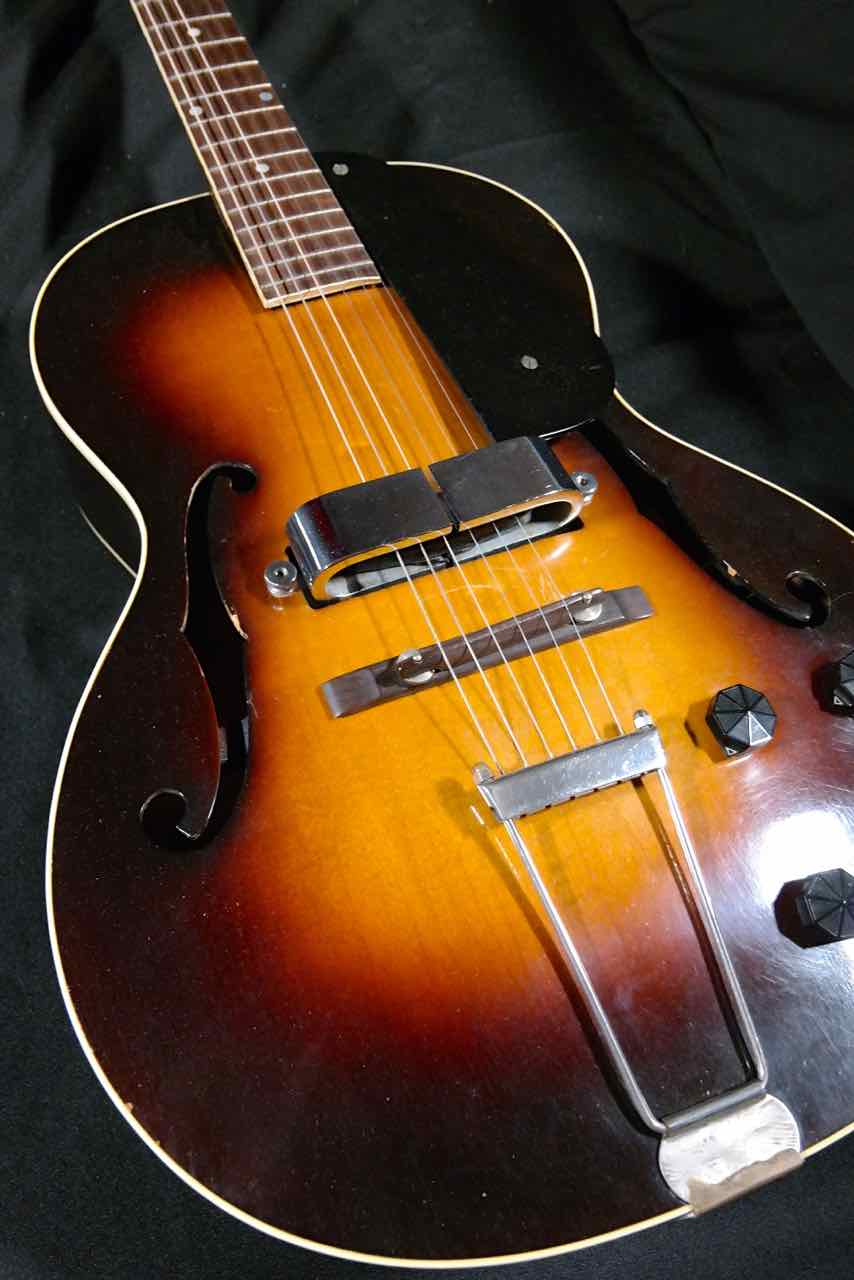

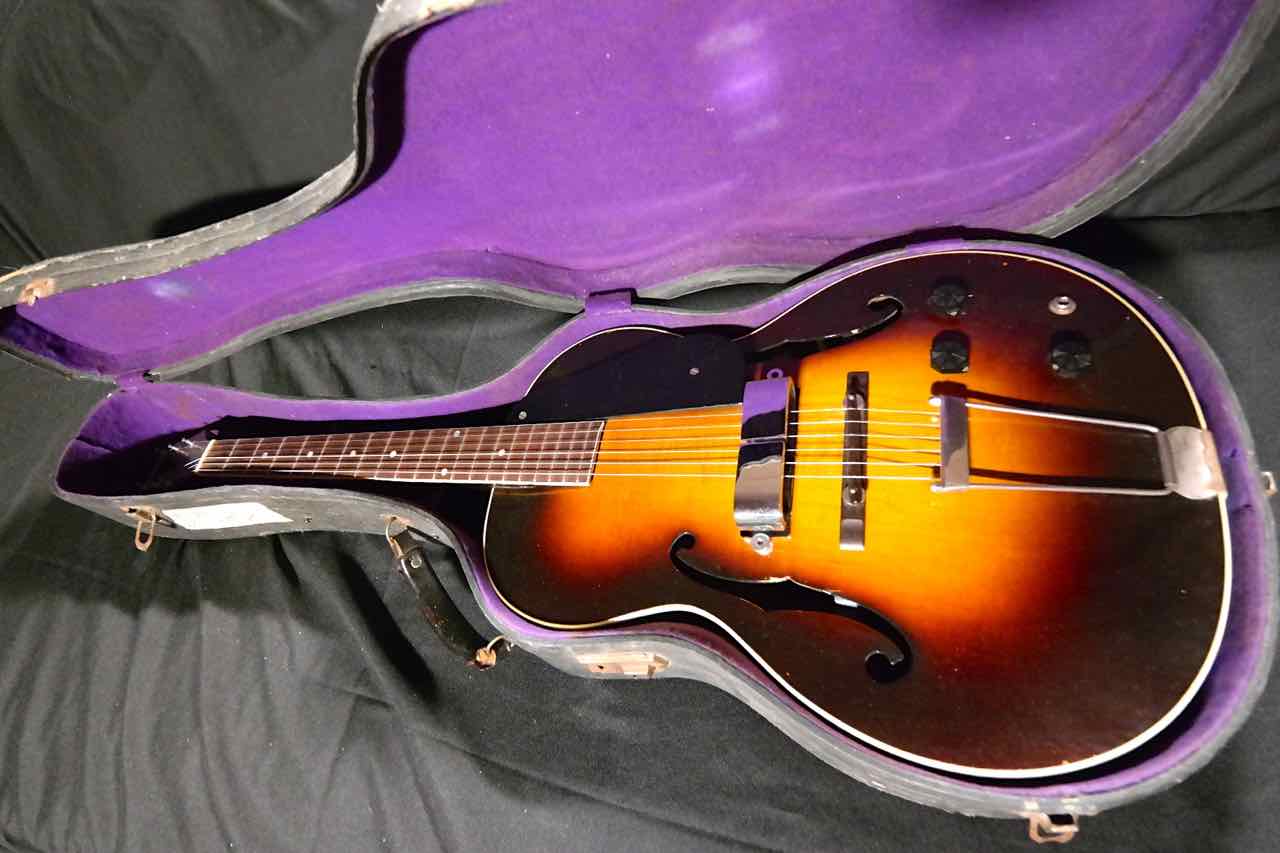

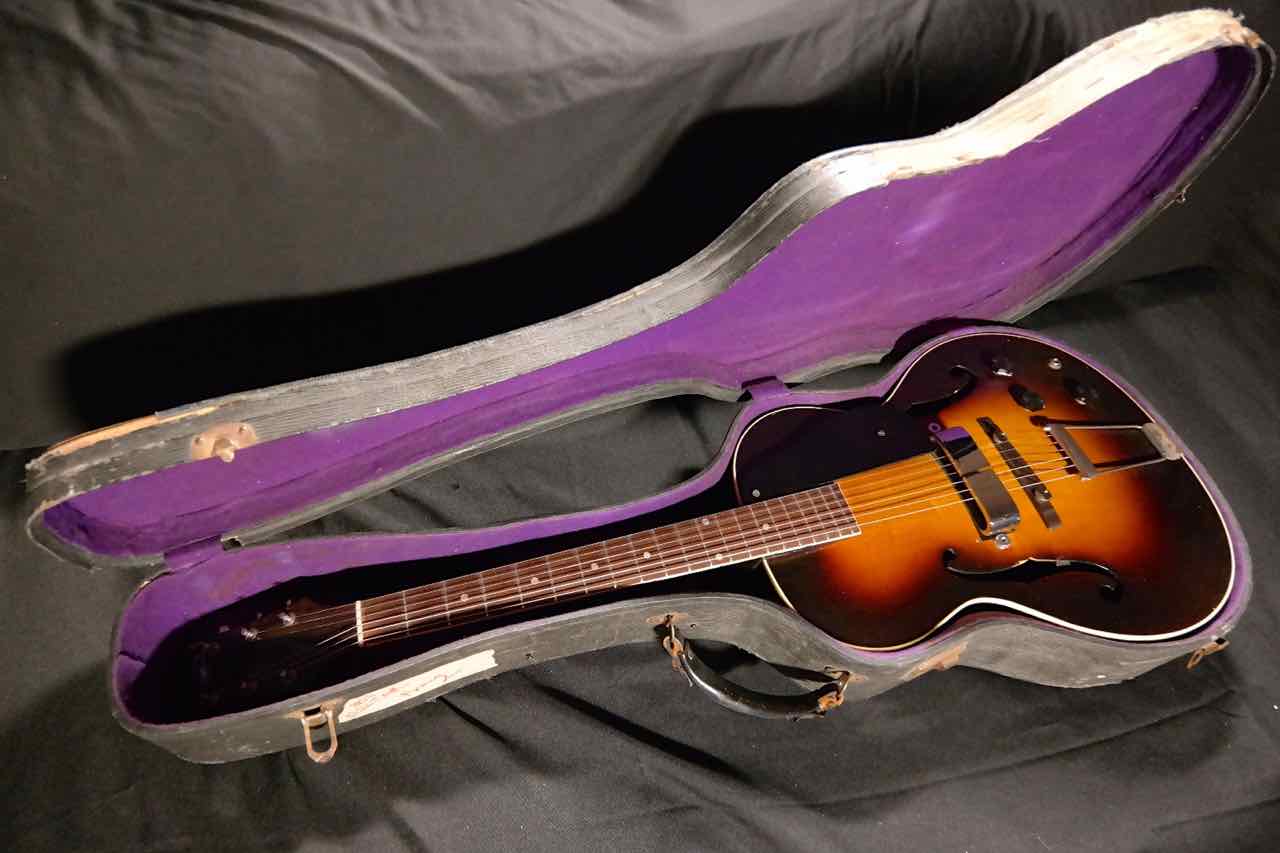

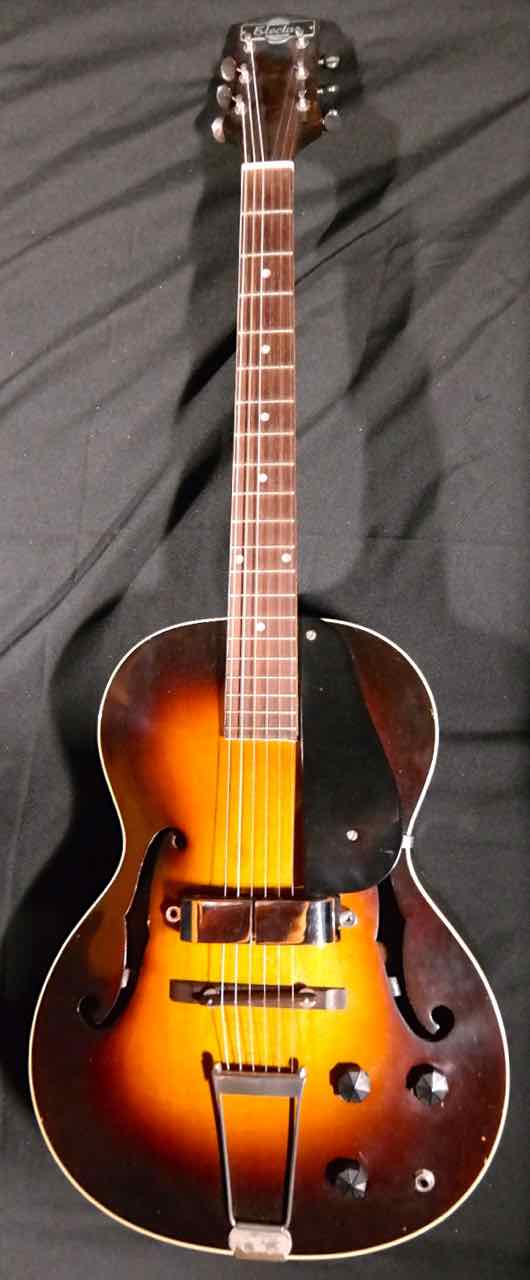

The arched top is laminated maple, the flat back and sides are also laminated maple single-bound in white pyralin. The one-piece mahogany neck with a scale length of 25.50 inches has a nice "V" profile and a nut width of just under 1 11/16 inches. The single-bound rosewood fretboard has 20 jumbo frets and inlaid pearl dot position markers. Headstock with gently pointed peak and metal Electar logo plate. Individual open-back Grover 'sta-tite' tuners with oval metal buttons and slot-head screws. Large style black plastic pickguard. Single Epiphone Model M Horseshoe Magnet pickup situated in the center of the top with two wheels for adjusting the height.

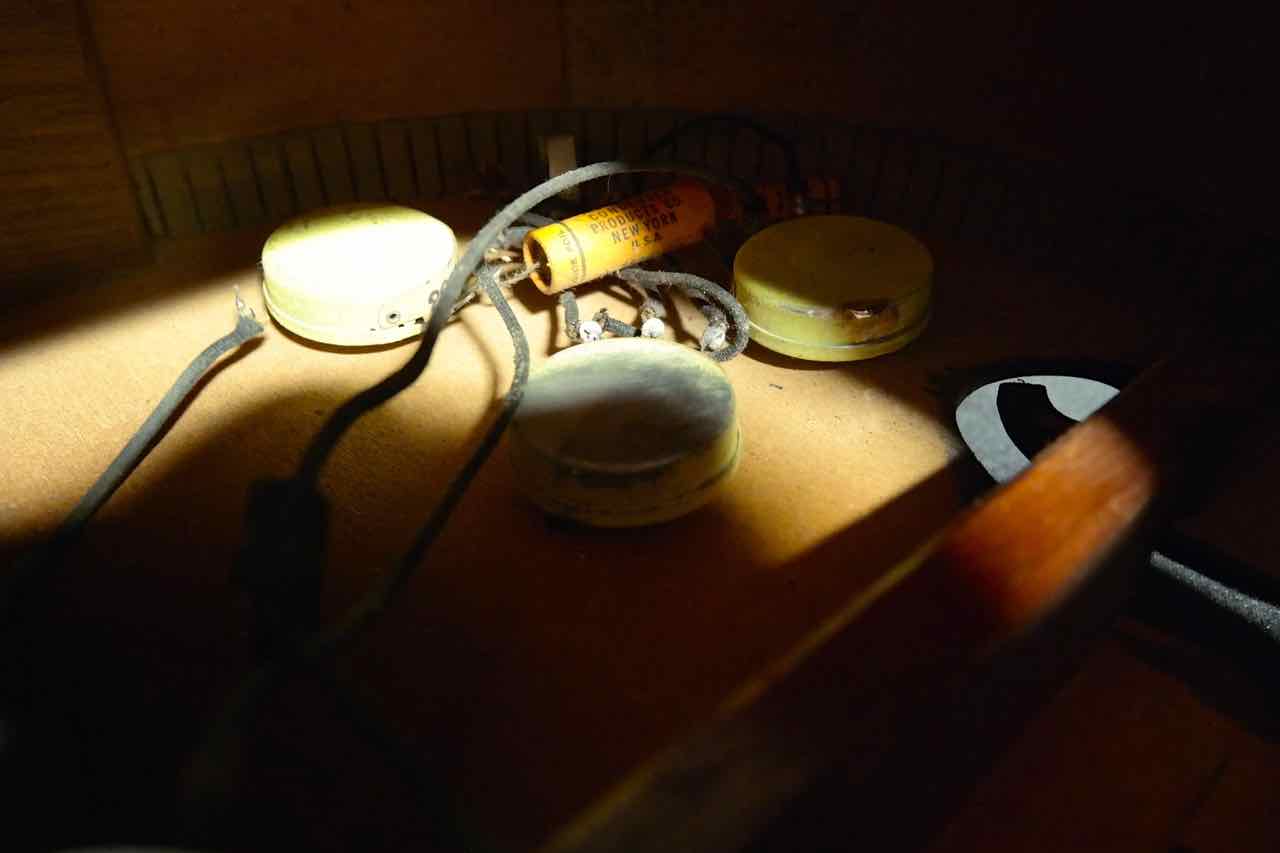

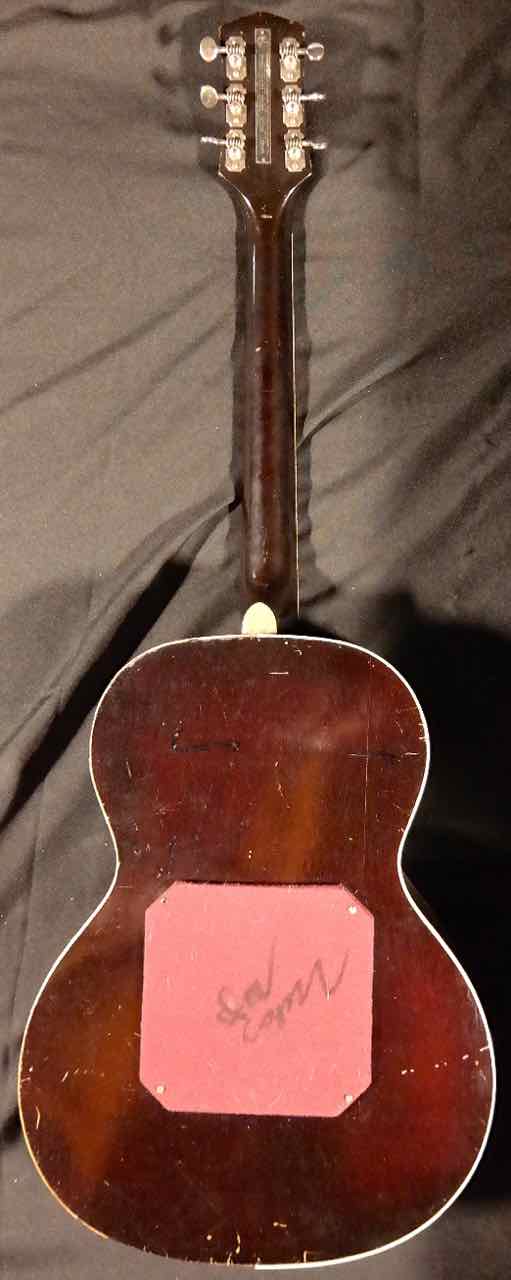

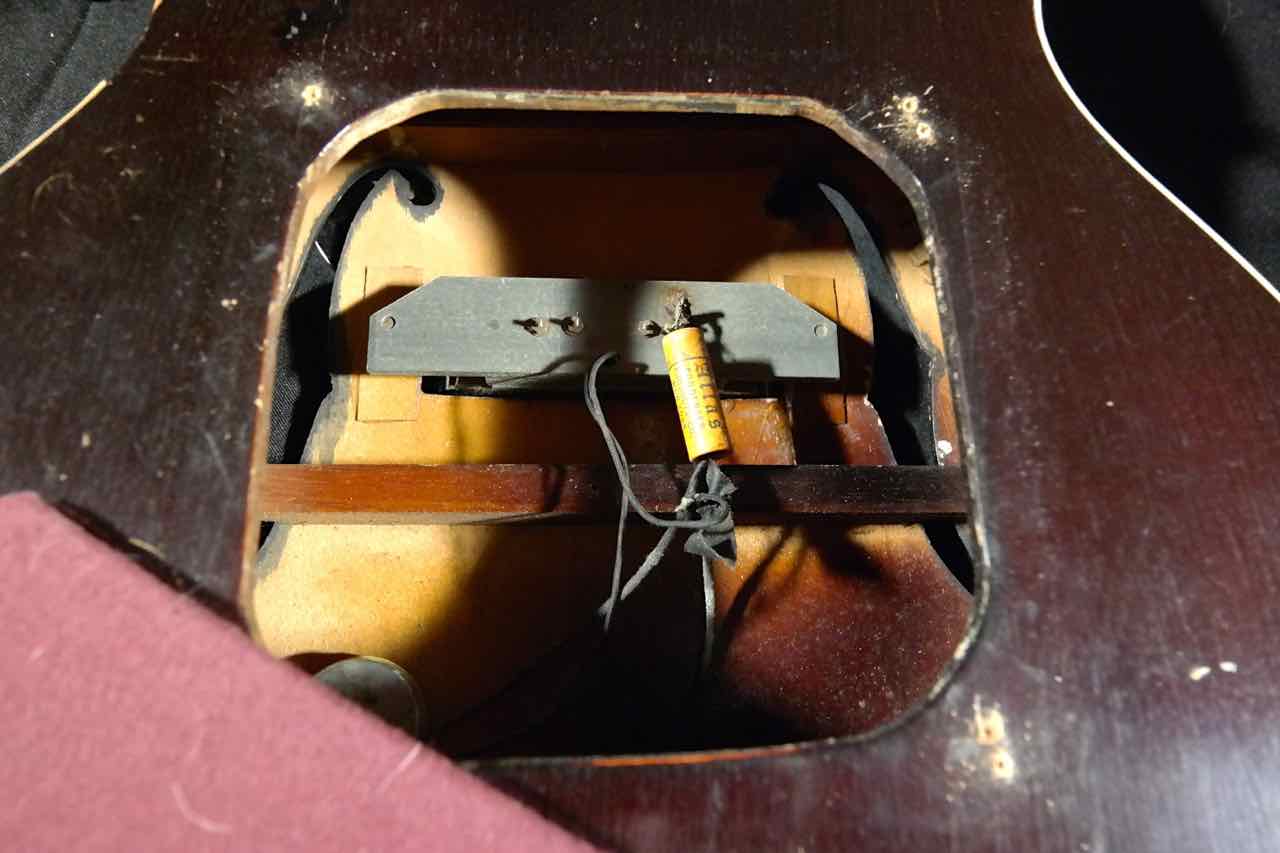

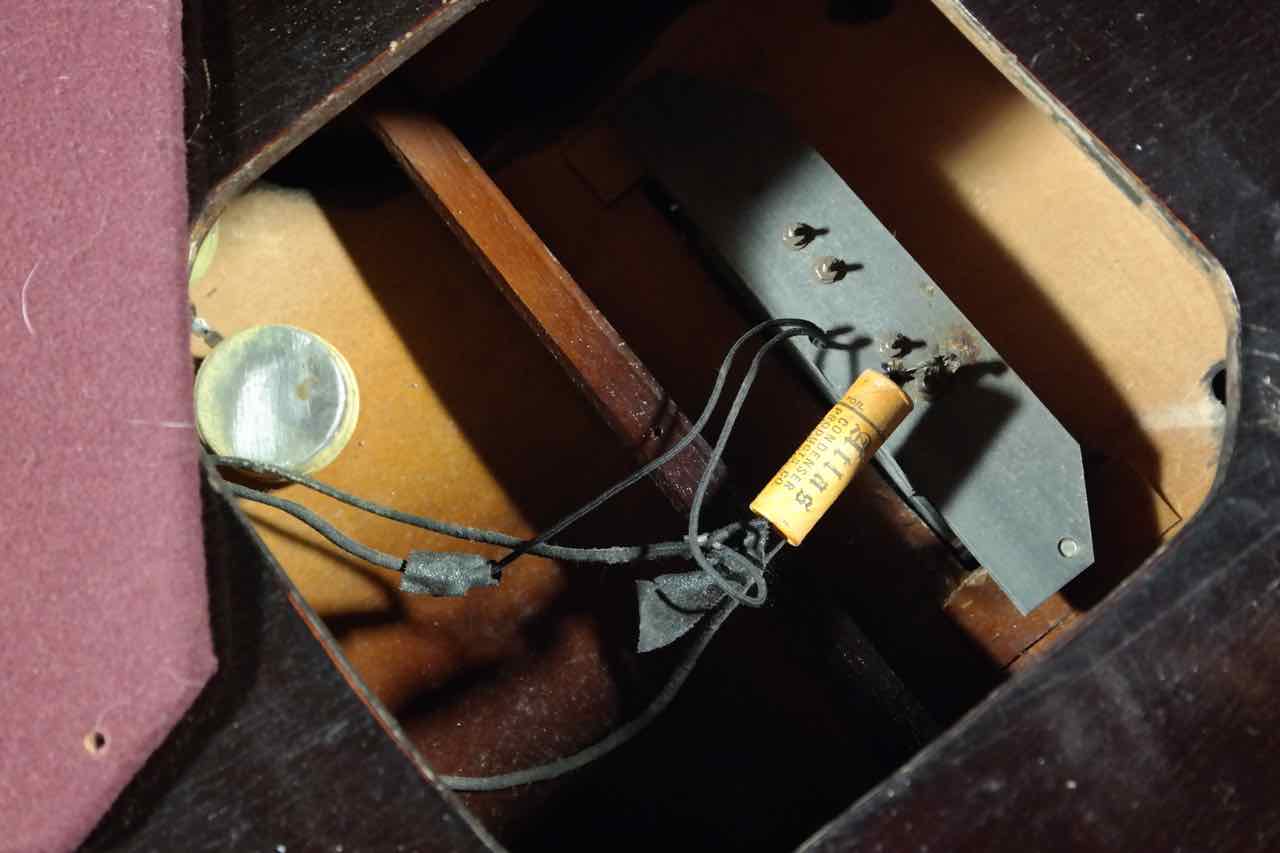

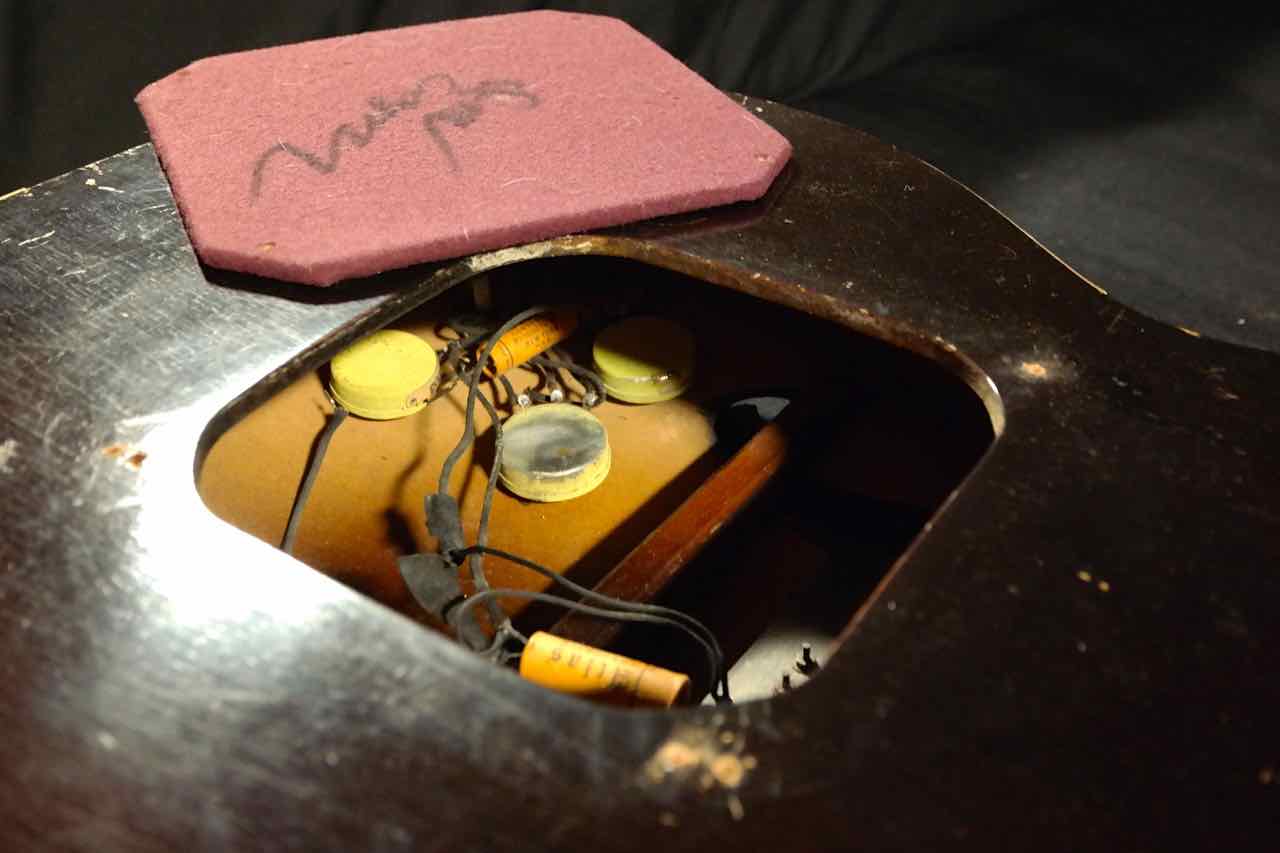

The instrument was fitted with the Model M pickup, a rather bulky horseshoe magnet pickup mounted through a rectangular access hole in the back. The hole was c. 4”x 6” and was covered with a cloth-wrapped plate screwed to the back. The pickup was mounted to maple blocks glued to the underside of the top and projected through a hole cut in the face of the instrument in bridge position

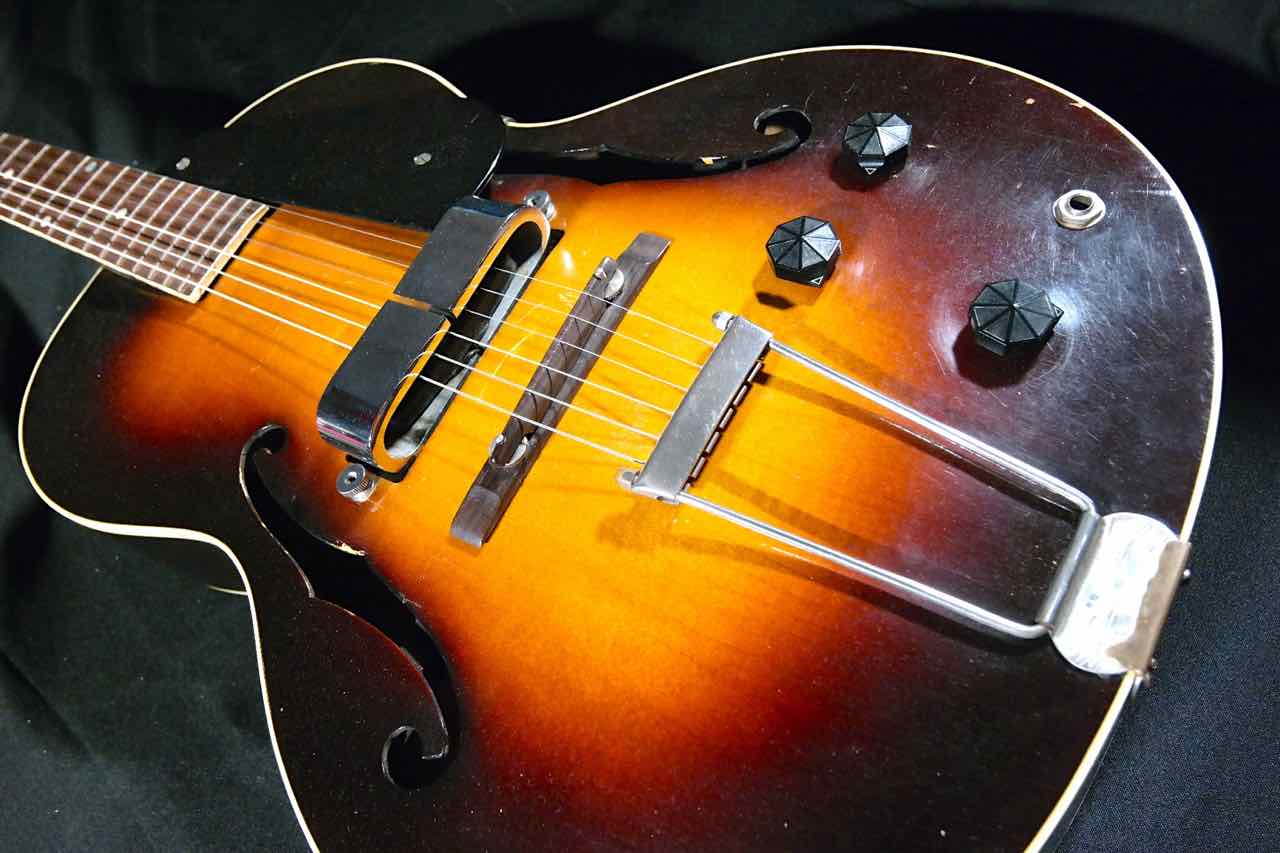

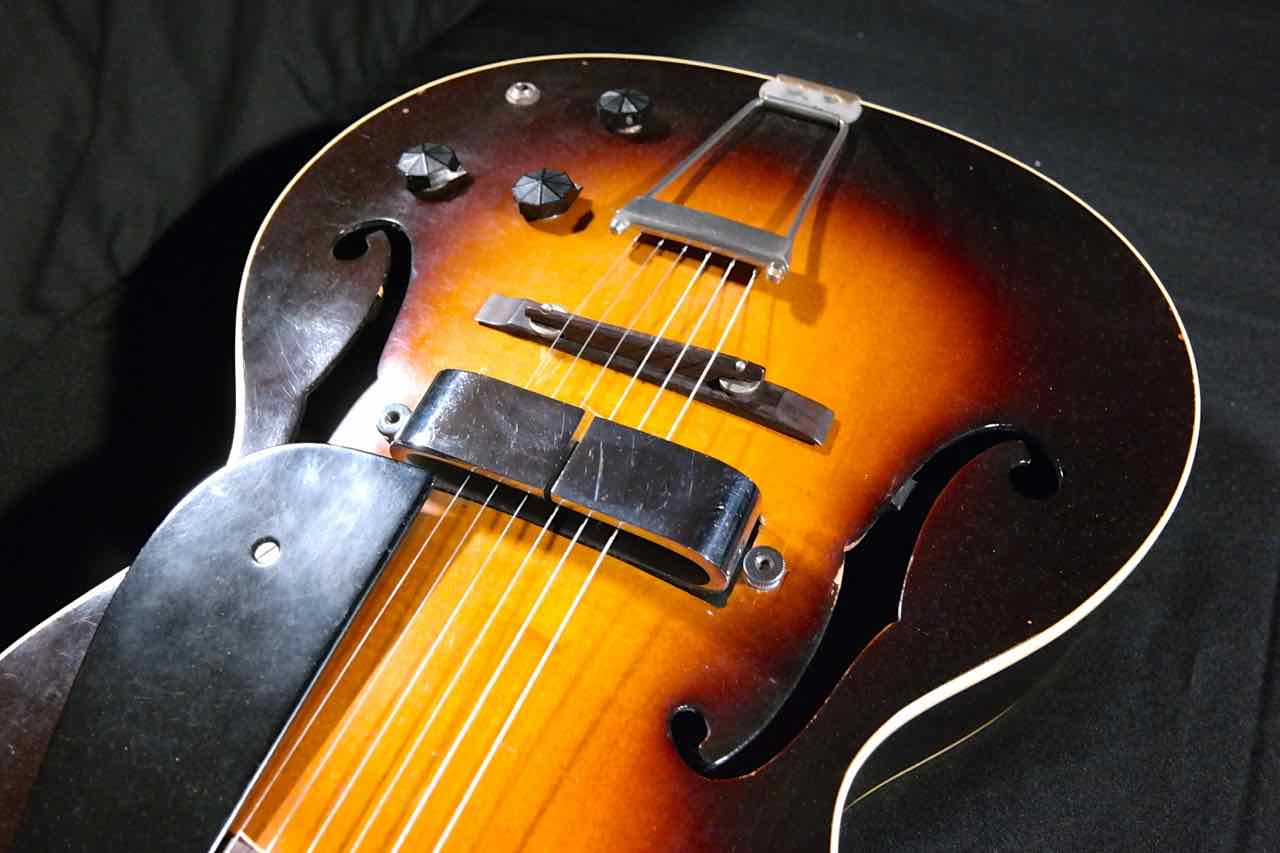

The poles of the magnet wrapped over the strings and included two magnets under the strings. The visible part of the pickup was nickel-plated on early models; while later models featured an “oven baked, black crinkle finish”. The input jack and the black Bakelite volume and tone controls with a small pointer were mounted on the lower treble bout in a line with the strings.

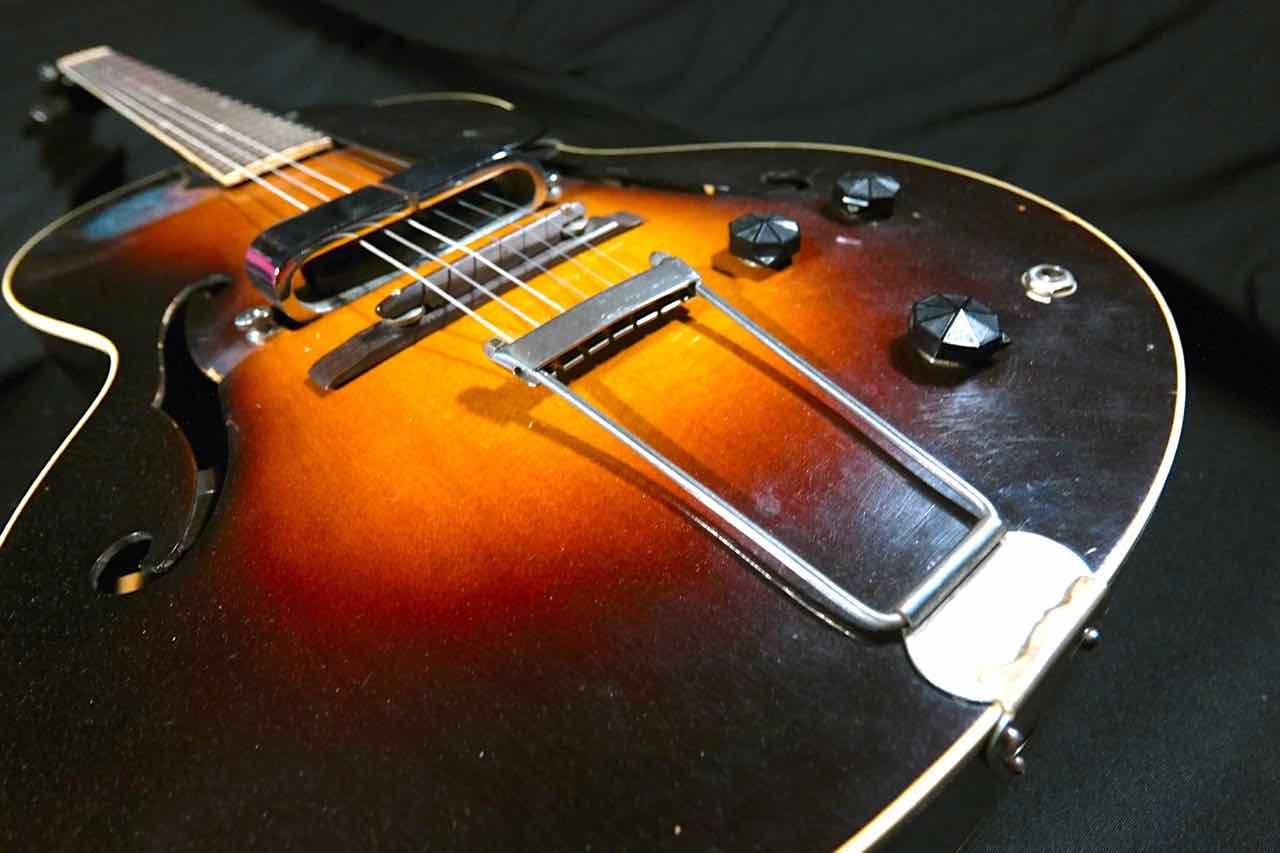

Rosewood bridge on rosewood base with two height adjustment wheels and Epiphone trapeze tailpiece. The serial number 428 is stamped onto the treble top-edge of the headstock. Walter Carter about the history of the Electar Model-M Spanish Guitar:
”Electro was a competitor, to be sure, but Epi's foremost competition would come from Gibson. The Electar line was announced in November 1935, just as Gibson was testing the waters with it's first electric, a metal-body Hawaiian steel guitar. Although Rickenbacker's first offerings had been metal, metal-body guitars didn't fly under the Gibson banner, and Gibson replaced the model with a wood-body Hawaiian at the beginning of 1936. The Gibson pickup had a metal plate protruding from the coil upward the strings. The end of the plate was notched so that the three highest-pitched strings appeared to have individual pole-pieces. When Gibson put it on a standard guitar, there were initially no notches, but in later versions the area under the second string was notched. Obviously the output was not always even across the entire pickup "bar" (to the player it looked like a bar rather than a plate)... Catalogues never showed it, but most of the Epi hollow-body electrics made prior to World War II had a large padded plate on the back that could be unscrewed and removed for easy access to the electronics. Although most musicians found it unnecessary to fiddle with the pickup and controls, it was that very feature that would bring an emerging guitar star named Les Paul into the Epi camp in the 1940's. Epiphone electric guitars had another unusual feature: a metal plate noting that the instrument was made under license to Miessner Inventions, of Milburn, New Jersey. Miessner held several patents on electric keyboard instruments and claimed that all electric guitars utilised their patents. Epi complied with Miessner's licensing demands and listed 10 of Miessner's patent numbers on the metal plate attached to each instrument. Other makers fought Miessner, however, and Miessner's claims were eventually settled and dropped. In a letter to dealers dated June 29, 1937, Epi reported that sales had doubled in the last year. The overall rise in popularity of the guitar undoubtedly contributed to the increase in sales. But part of Epi's success was based on it's image as an innovative company,, an image enhanced by the Master Pickup and a barrage of new features introduced in 1937 including the following: The Mastervoicer Tone Control, the catalogue claimed "enables the player to obtain a great variety of effects varying from a muted tone to that of the strident banjo with one turn of the knob."... Epi's "thrust rod" - obviously a play on Gibson's truss rod - was, like Gibson's, an adjustable truss rod in the neck. But unlike Gibson's, which adjusted at the headstock end of the rod, Epi's adjustment was at the body end of the neck, and it did not require removal of a truss rod cover. (Walter Carter. Epiphone The Complete Story, pp. 33 - 34.) From another Book on Ephiphone:
”The Model M was introduced in 1935 as the first Epiphone electric guitar and was produced until about 1939. The body was the 14 3/4" Grand Concert size with a laminate maple pressed top, maple sides, a flat maple laminate back and a one-piece mahogany neck. The top, back and neck were bound in single-ply white pyralid. The rosewood fingerboard was inlaid with dot position markers at frets three, five, seven, nine and fifteen and a double dot at the twelfth fret. Tuners were a simple open-back design with either plastic or metal buttons. The peg-head came to a gentle point and featured the "Electar" name. The instrument was finished in a sunburst on the top and chocolate brown sides, back and neck. The tailpiece, pick-guard and adjustable bridge were the standard Epiphone design used on acoustic instruments of the time (though the pick-guard was somewhat smaller). Besides having a flat back, two other ways in which this model differed from the acoustic arch-tops of the time were that the neck was mounted flush with the body rather than elevated, and the top was horizontally braced. This heavy bracing, according to the 1936 Electar catalogue, "properly supported and dampened [the top] in order to avoid after tones and acoustic feedback." This instrument was fitted with the Model M pickup, a rather bulky horseshoe magnet pickup which was mounted through a rectangular access hole through the back. This hole was approximately 4" x 6" and was covered with [a]cloth-wrapped plated screwed to the back. The pickup was mounted to maple blocks glued to the underside of the top and projected through a hole cut in the face of the instrument in the bridge position. The poles of the magnet wrapped over the strings and included two magnets under the strings. The visible part of the magnet was nickel-plated on early models; later models featured an "oven-backed, black crinkle finished." Volume and tone controls were mounted on the lower treble bout in a line parallel to the strings. The input jack was also on the top near the edge and the control knobs, in an octagonal shape with a small pointer, were black, Bakelite. The earliest examples from 1935 lacked the tone control, and the volume also incorporated an on/off switch... An innovative, though short-lived (less than one year) feature, was the "Rhythm Control," announced in a letter to dealers dated June 29, 1937. This consisted of a third control knob on the face of the instrument. It was said to "enable the player to execute the fastest rhythms without blurring or running together of chords."... The Electar Model M was discontinued by 1939. (Fisch & Fred. Epiphone The House of Stathopoulo. pp. 116-117).
